Home > Products > I-Stud Shaftwall System

I-Stud Shaftwall System

Steel-Con has engineered and designed the I-Stud Shaftwall System to friction fit with ease.

Cut-to-length and ready to install, the I-Stud paired with J-Track or JL-Corner creates an exceptional safety and performance system. The I-Stud is compatible with the gypsum Shaftliner boards of most major companies and is contractor preferred.

Shaftwall is used to enclose elevator shafts, stairwalls, air-return shafts, mechanical shafts, horizontal membranes and other non-protected floor openings in hotels, office buildings, hospitals, and other large buildings.

I-Stud

Material Composition

  • ASTM: A 653 / A 653M
  • Material Thicknesses: 33, 33H, 43H mil
  • 33/33H mil: G-60 galvanized coating
  • 43H mil: G-60 galvanized coating
thumbnail of I-Stud-Shaft-Wall-Brochure

I-Stud Shaftwall System

Compatibility

Steel-Con I-Stud is compatible with all major gypsum Shaftliner board manufacturers.

Gallery

I-Stud
I-Stud
J-Track
J-Track

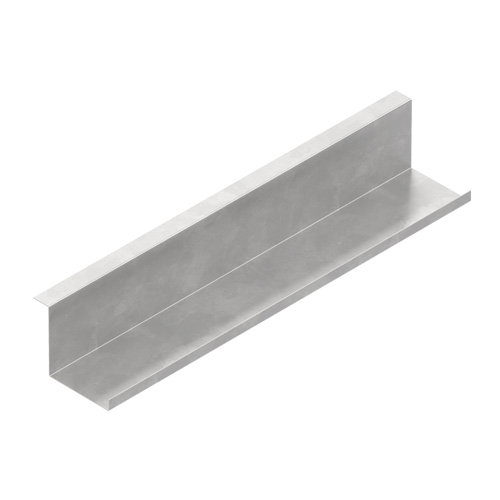

JL-Track
JL-Track
I-Stud Shaftwall Assembly
I-Stud Shaftwall Assembly

Shaftwall I-Stud UL’s

  Shaftwall UL Combined   UL Listing HW D 0401 1hr-2hr   UL Listing HW D 0476 1hr-2hr SLOTTED   UL Listing HW D 0480 1hr-2hr SLOTTED   UL Listing HW-D-0496 1hr-3hr   UL Listing HW-D-0497 1hr-2hr   UL Listing HW-D-0504 2hr   UL Listing HW-D-0525 2hr   UL Listing HW-D-0557 2hr   UL Listing HW-D-0559 1hr-2hr
  UL Listing HW-D-0563 2hr   UL Listing HW-D-0584 2hr   UL Listing HW-D-0585 2hr   UL Listing HW-D-0586 2hr   UL Listing HW-D-0598 2hr   UL Listing HW-D-0599 2hr   UL Listing HW-D-0602 1hr-2hr SLOTTED   UL Listing HW-D-0621 1hr-2hr   UL Listing HW-D-0622 1hr-2hr   UL Listing HW-D-0623 1hr-2hr
  UL Listing HW-D-0625 2hr   UL Listing HW-D-0631 1hr-2hr   UL Listing HW-D-1081 1hr-2hr   UL Listing HW-D-1085 1hr-2hr   UL Listing U417 1hr-3hr - CertainTEED   UL Listing U497 2hr - National   UL Listing U498 2hr - National   UL Listing U499 1hr - National   UL Listing V451 4hr - National   UL Listing V455 1hr-2hr - American
  UL Listing V470 1hr-3hr - CertainTEED   UL Listing V481 1hr-3hr - Lafarge   UL Listing V493 1hr-2hr - Temple   UL U428   UL U429   UL V473   W 414   W 419   W 437   W 446
